Marstek CT002 3-Phase Smart Meter
€99.00
Available, delivery time: 2-5 Tage
Product information "Marstek CT002 3-Phase Smart Meter"

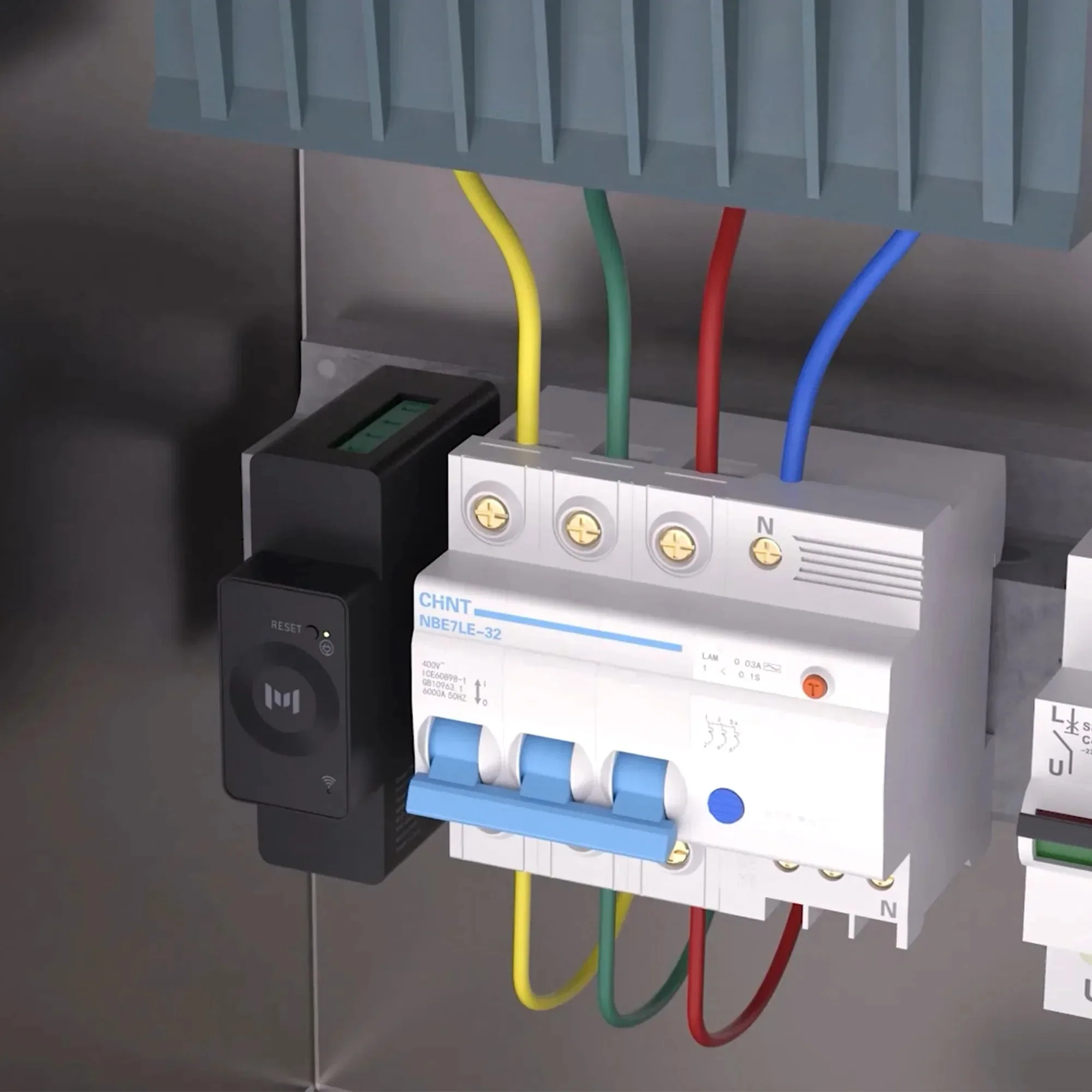

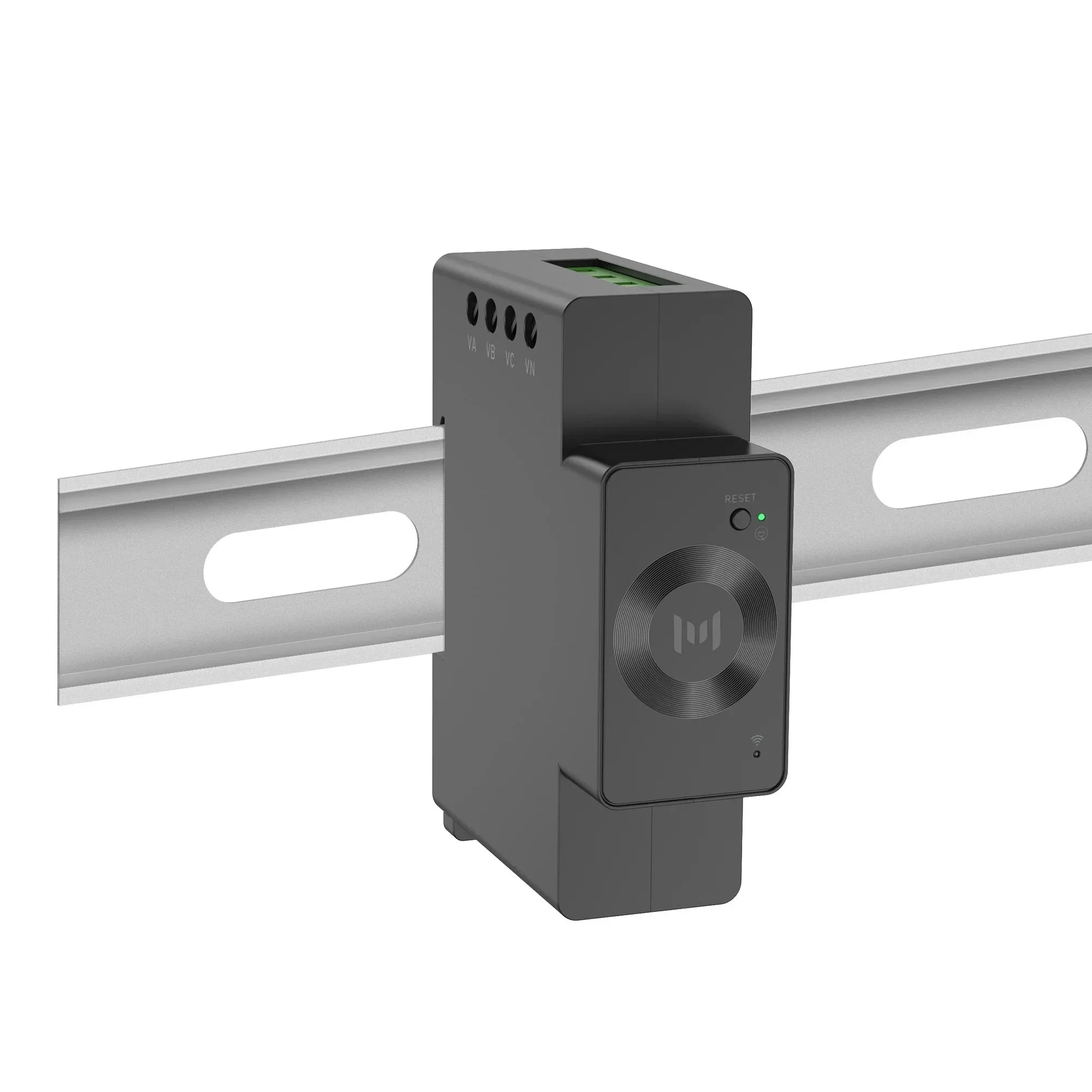

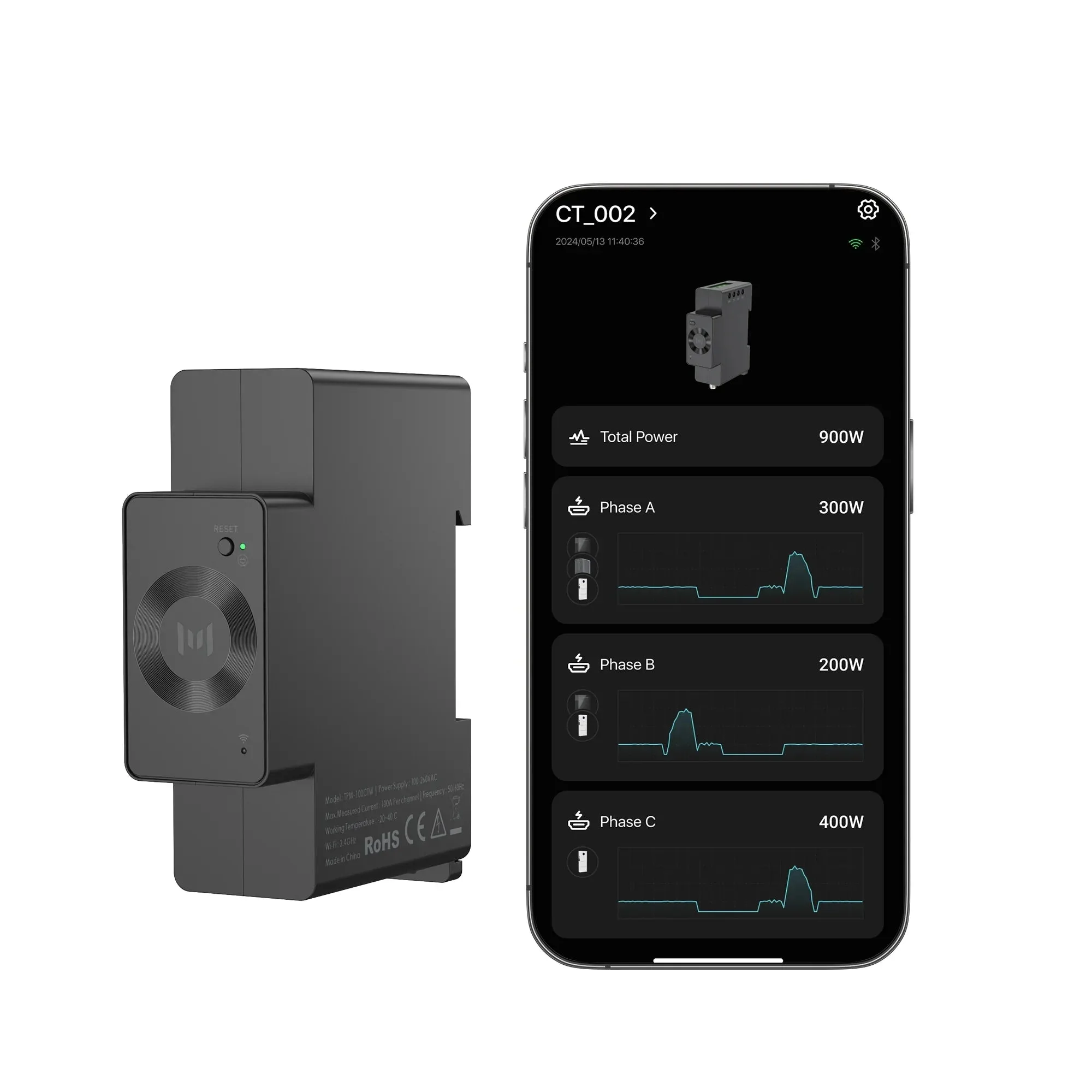

Three-phase smart meter for DIN rail mounting. Measures household consumption in real time with 1 % accuracy and is the prerequisite for a Marstek battery to regulate for zero feed-in. Installation in the consumer unit belongs in the hands of a qualified electrician.
Specifications
| Measurement | 3-phase, 1 % accuracy |
|---|---|
| Max. current | 100 A per phase |
| Connectivity | Wi-Fi 2.4 GHz (802.11 b/g/n), Bluetooth 5.2 |
| Compatible with | Marstek Venus, Jupiter and Saturn |
| Installation | DIN rail, installation by a qualified electrician |
| Warranty | 10 years |
| Warranty: | 10 years |
|---|
