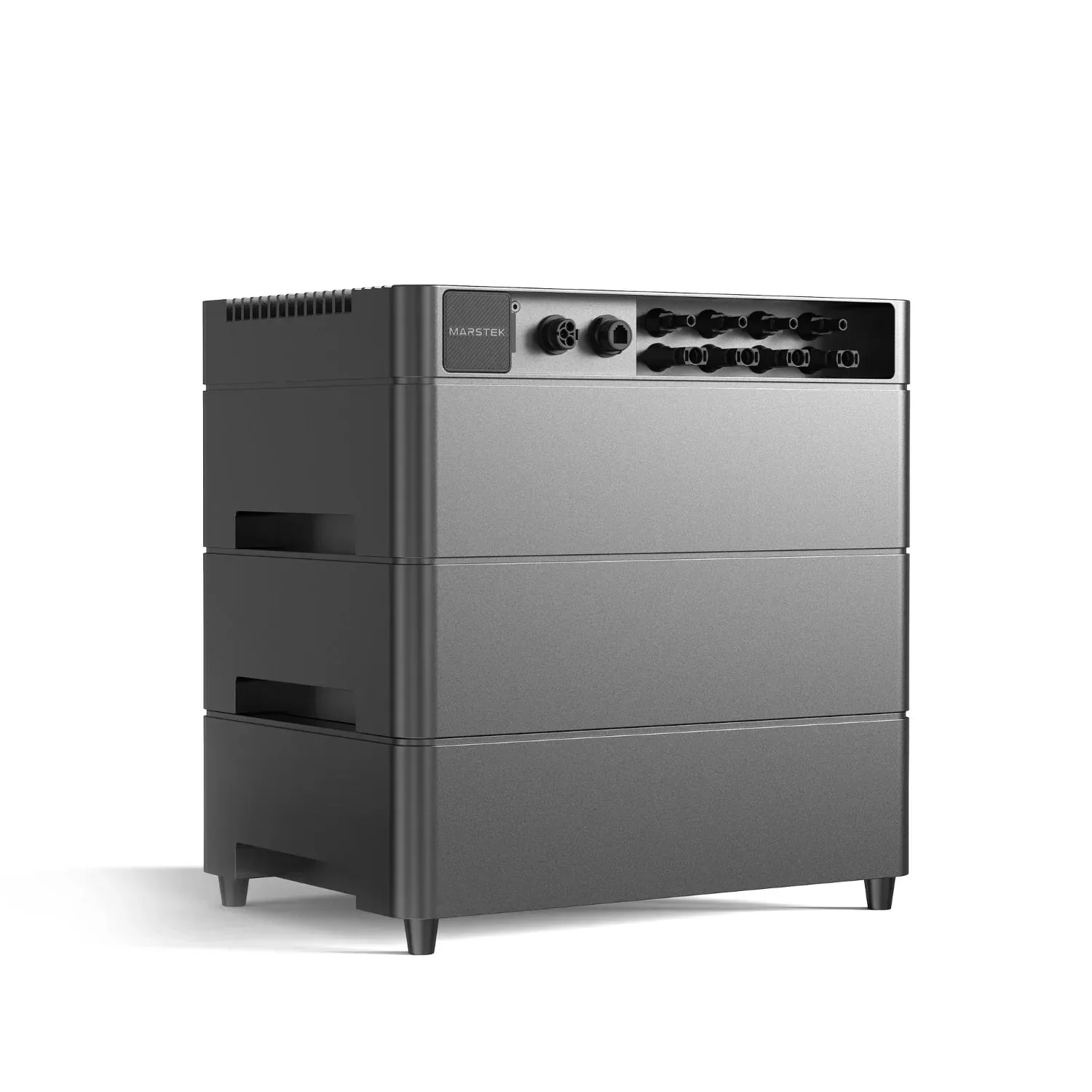

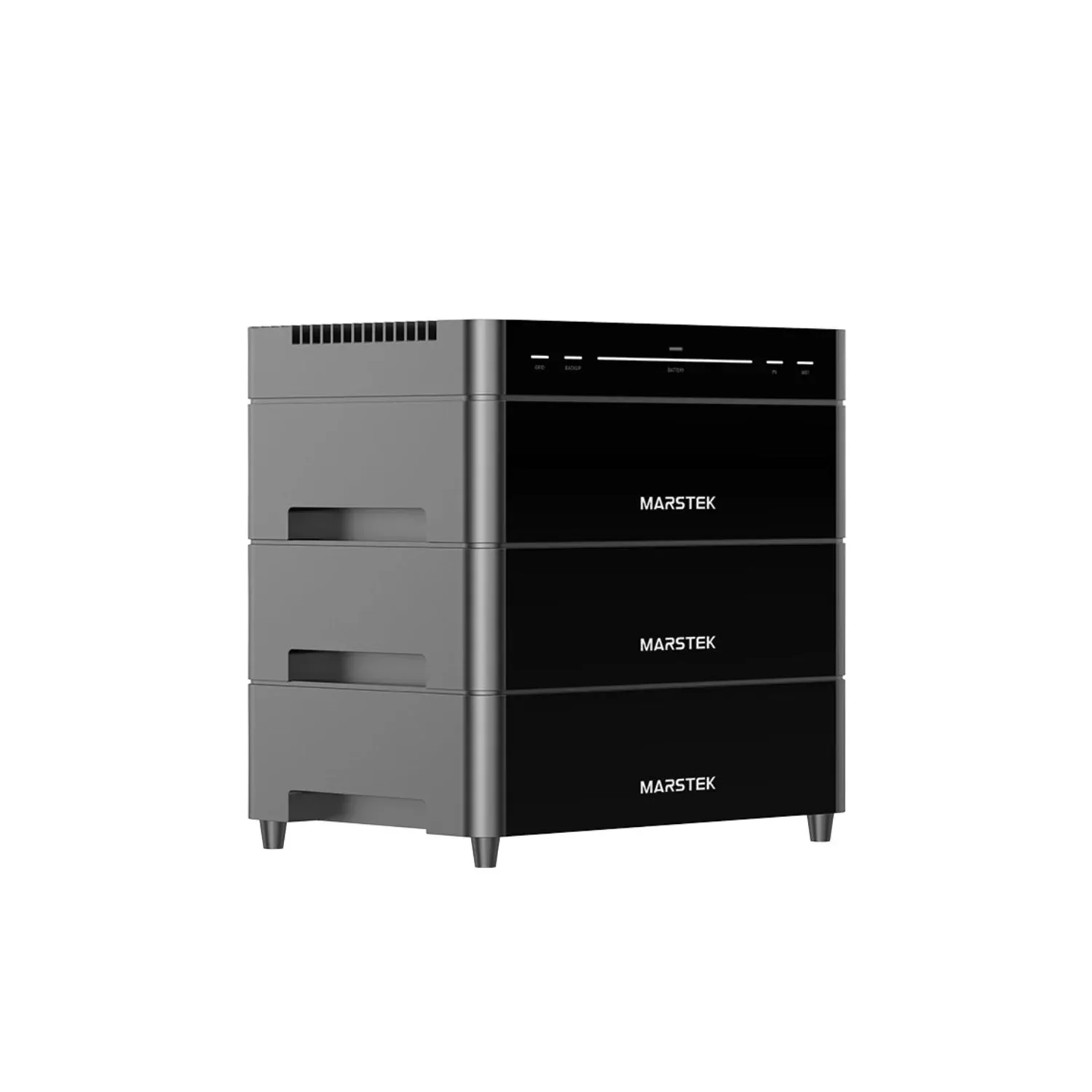

Marstek Venus A All-in-One Plug-in Battery
€599.00
Available, delivery time: 2-5 Tage
Product information "Marstek Venus A All-in-One Plug-in Battery"
All-in-one battery with an integrated microinverter and four MPPT trackers. Takes up to 2.4 kW of PV output directly, so no separate inverter is needed. Expandable to 12.72 kWh with up to five add-on batteries and delivers 1.5 kW of backup power.
Specifications
| Usable capacity | 2.12 kWh (expandable to 12.72 kWh) |
|---|---|
| Power | 1,500 W bidirectional, 800 VA standard output |
| PV input | 4 × MPPT, max. 2,400 W |
| Backup power | 1.5 kW |
| Cell technology | LiFePO₄ (LFP) |
| Cycles | > 6,000, 80 % remaining capacity after 15 years |
| IP rating | IP65 |
| Dimensions | 450 × 340 × 220 mm |
| Weight | 26 kg ± 1 kg |
| Connectivity | Wi-Fi, Bluetooth, Ethernet |
| Warranty | 10 years |
| Capacity: | Up to 2.5 kWh |
|---|---|
| Cell Technology: | LiFePO₄ (LFP) |
| IP Rating: | IP65 |
| Warranty: | 10 years |
Login
Passt perfekt dazu
Add-on battery for the Marstek Venus A. Up to five modules can be stacked, expanding the system to 12.48 kWh. Requires a Venus A base unit and cannot be operated without one.SpecificationsCapacity2.12 kWhCompatible withMarstek Venus AMax. expansion5 modules (12.48 kWh total)Cell technologyLiFePO₄ (LFP)Cycles> 6,000IP ratingIP65Weight19 kg ± 1 kgWarranty10 years
Three-phase smart meter for DIN rail mounting. Measures household consumption in real time with 1 % accuracy and is the prerequisite for a Marstek battery to regulate for zero feed-in. Installation in the consumer unit belongs in the hands of a qualified electrician.SpecificationsMeasurement3-phase, 1 % accuracyMax. current100 A per phaseConnectivityWi-Fi 2.4 GHz (802.11 b/g/n), Bluetooth 5.2Compatible withMarstek Venus, Jupiter and SaturnInstallationDIN rail, installation by a qualified electricianWarranty10 years
Bifacial N-Type solar module in a twin pack. With a bifaciality factor of 80 %, the rear face adds to the yield – which pays off particularly on light-coloured facades and on elevated mounts. 30-year linear performance warranty down to 87 % of rated output.SpecificationsPower450 W per module, 2 modules per setCell technologyN-Type bifacial, 96 cells (48 × 2)Efficiency22.5 %Bifaciality factor80 % ± 5 %Dimensions1,762 × 1,134 × 30 mm per moduleWeight24.2 kg per moduleIP ratingIP68Operating temperature−40 °C to +85 °CConnectorMC4Warranty15 years product, 30 years linear performance
