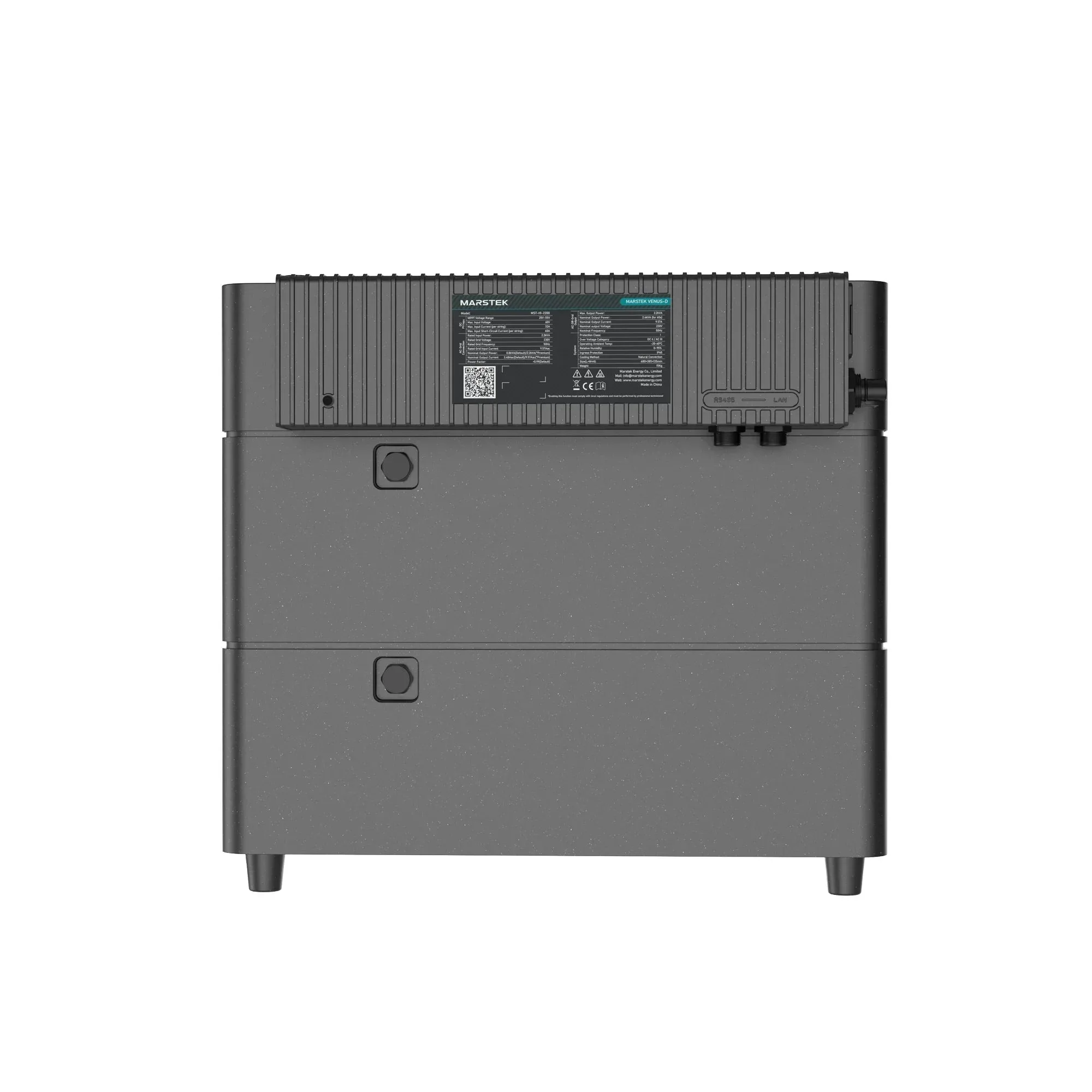

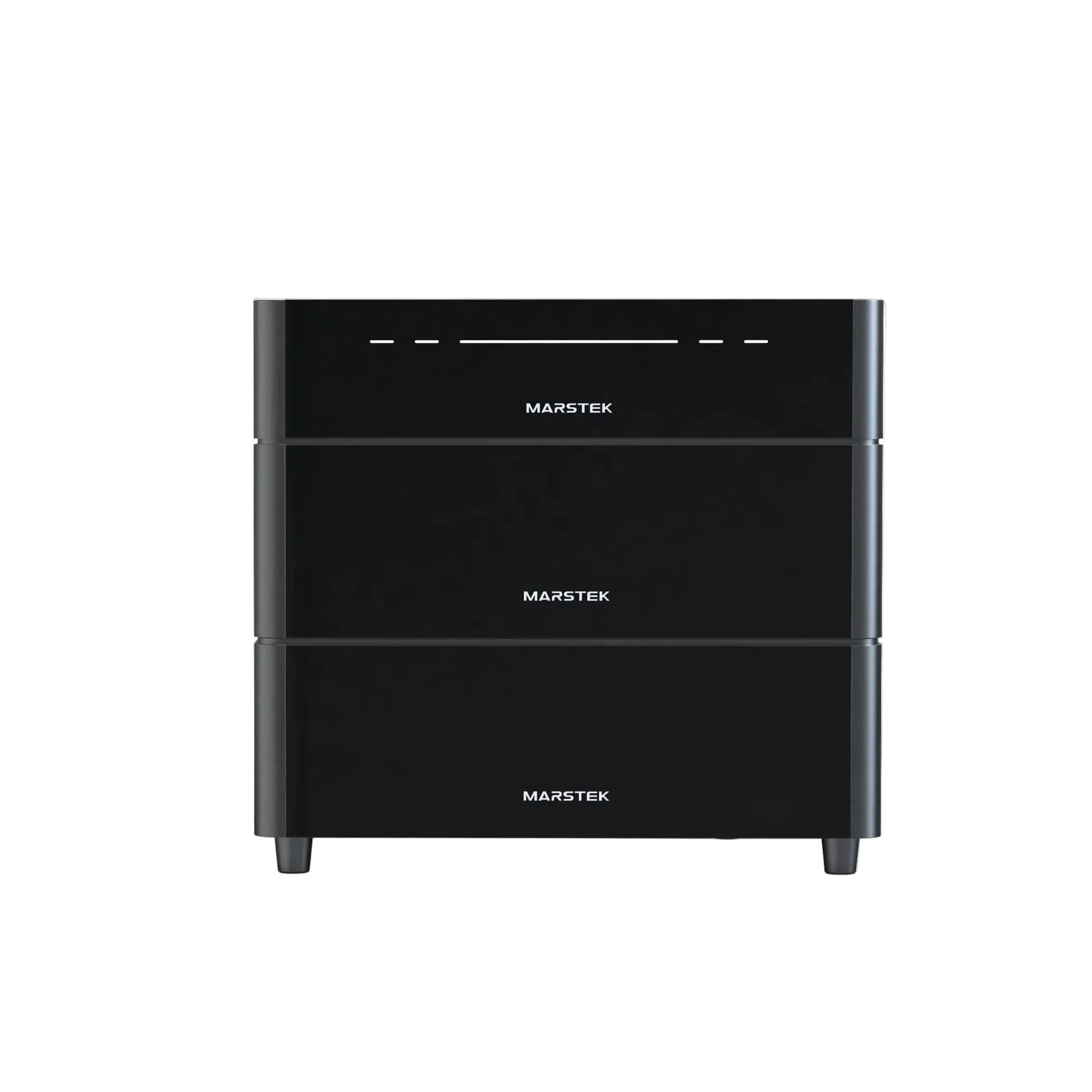

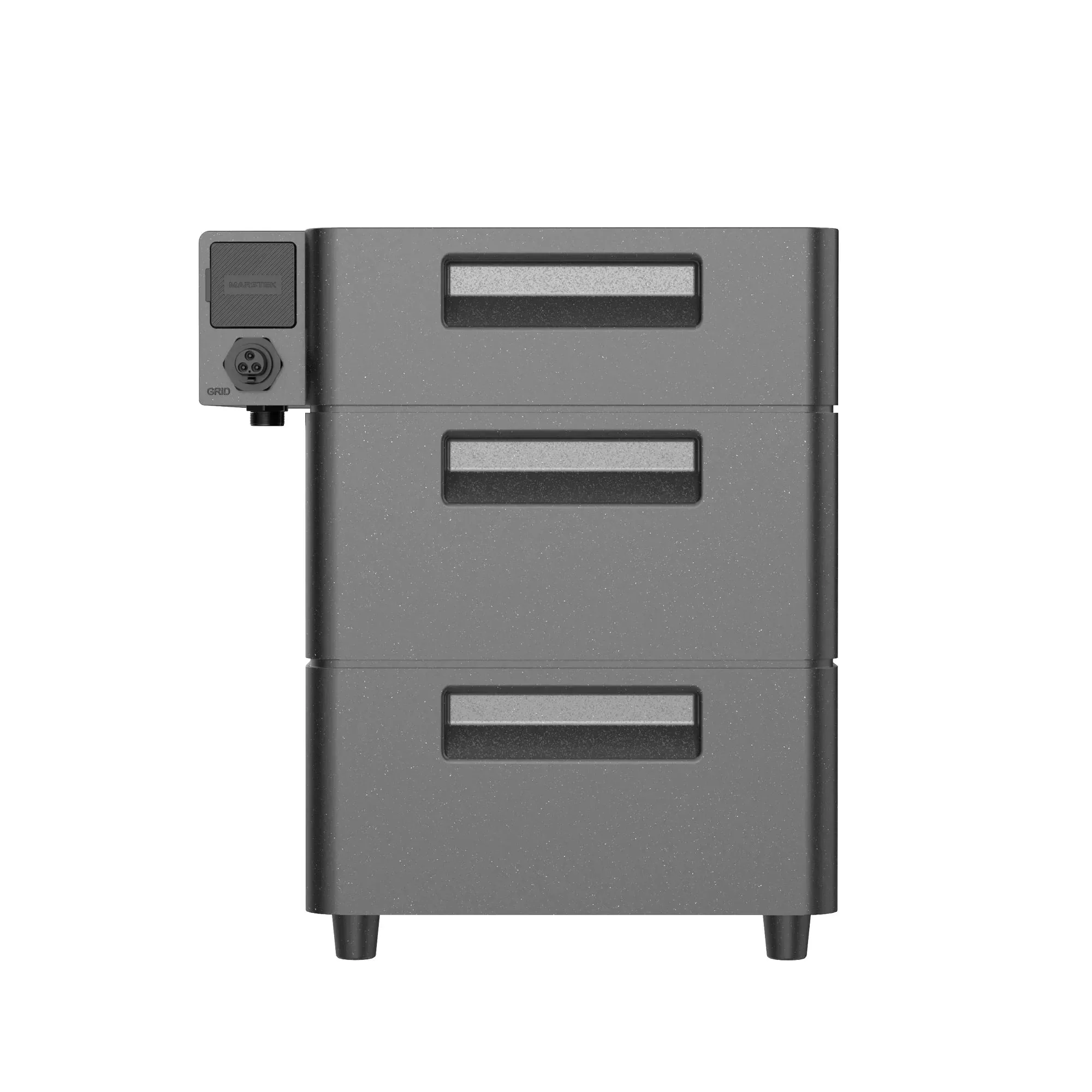

Marstek Venus D All-in-One Plug-in Battery
€599.00
Available, delivery time: 2-5 Tage
Product information "Marstek Venus D All-in-One Plug-in Battery"
All-in-one battery consisting of separate power and battery modules. 2,500 W charge and discharge power, expandable to 15.36 kWh with up to six battery modules. The modular construction keeps the weight of each unit low during installation.
Specifications
| Usable capacity | 2.56 kWh (expandable to 15.36 kWh) |
|---|---|
| Power | 2,500 W (2.2 kVA) |
| Cell technology | LiFePO₄ (LFP) |
| Cycles | > 6,000 at 25 °C |
| IP rating | IP65 |
| Dimensions, power module | 480 × 320 × 230 mm |
| Dimensions, battery module | 480 × 320 × 115 mm |
| Weight | 28 kg power module, 19 kg per battery module |
| Warranty | 10 years |
| Capacity: | 2.5 to 5 kWh |
|---|---|
| Cell Technology: | LiFePO₄ (LFP) |
| IP Rating: | IP65 |
| Warranty: | 10 years |
