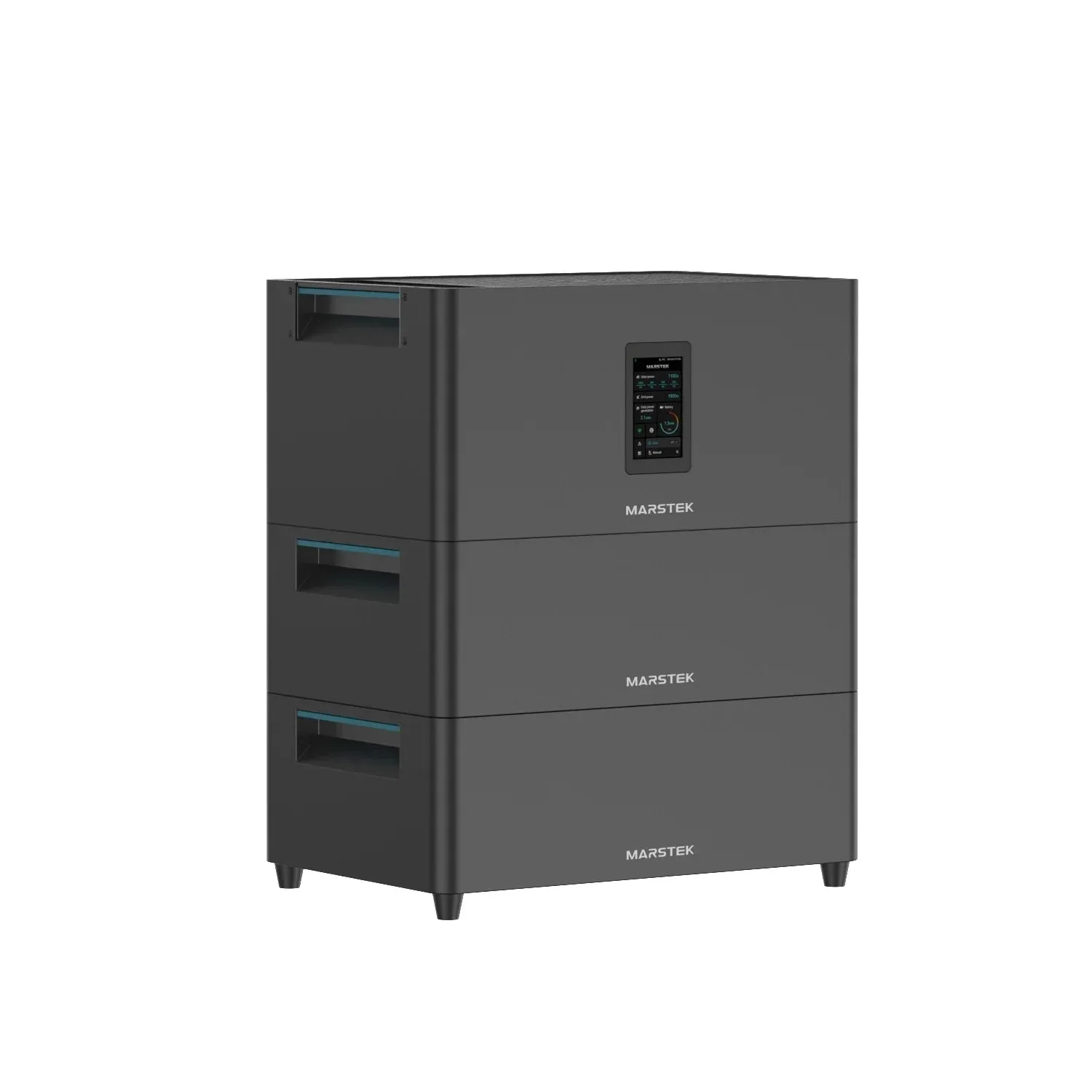

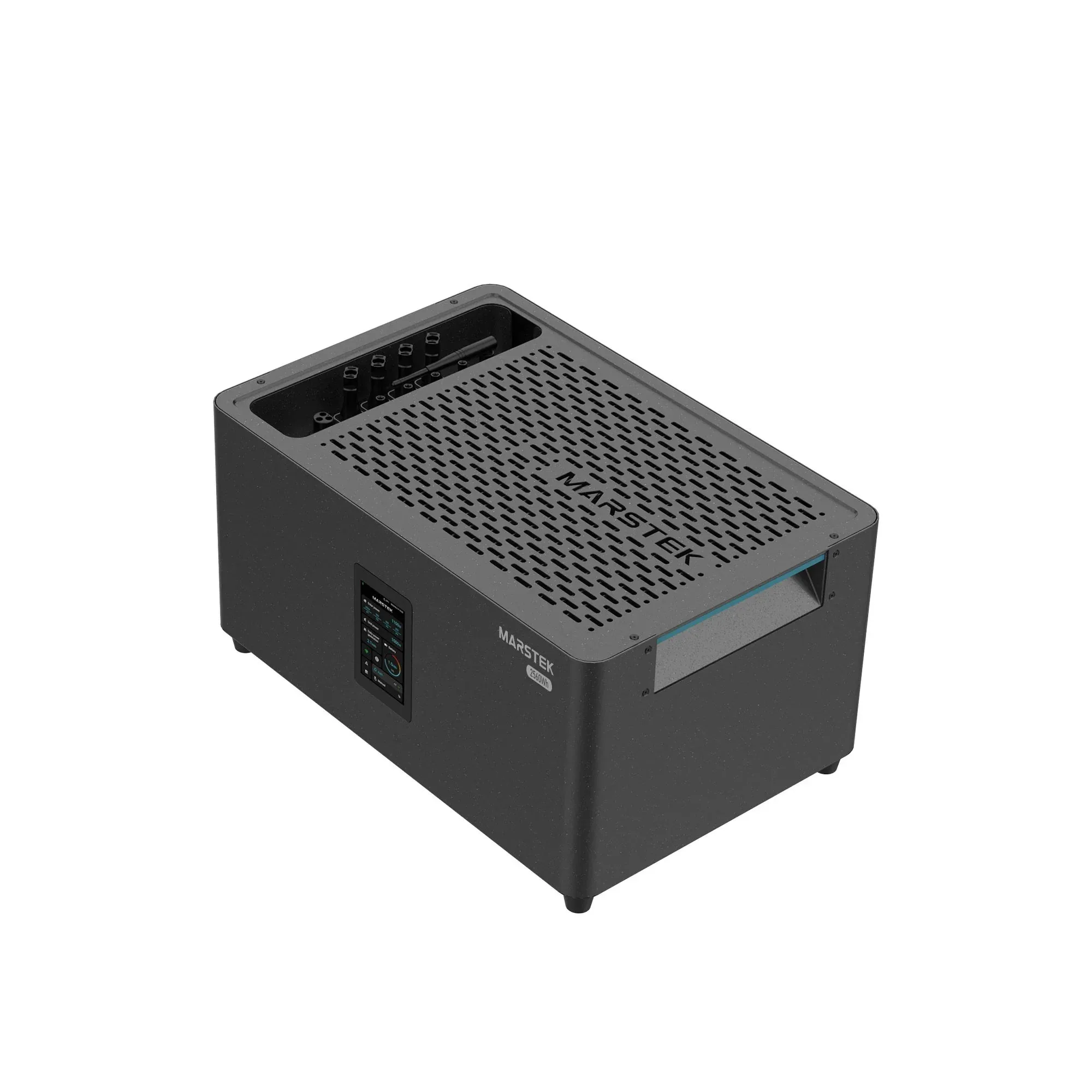

Marstek Jupiter C Plus All-in-One Plug-in Battery
€469.00
Available, delivery time: 2-5 Tage
Product information "Marstek Jupiter C Plus All-in-One Plug-in Battery"

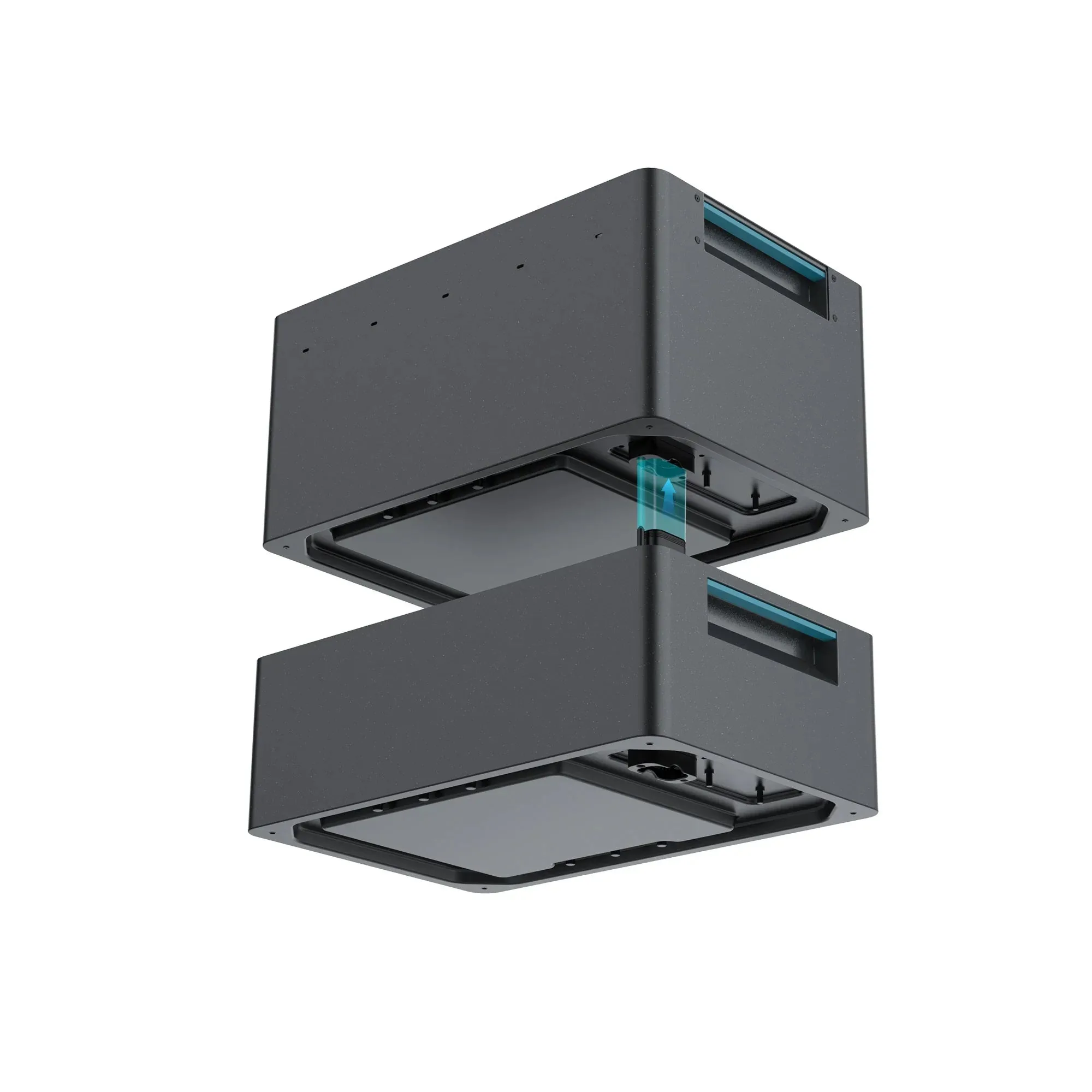

All-in-one battery with an integrated 800 VA microinverter and four MPPT inputs for up to 2.4 kW of PV output. Expandable to 10.24 kWh, making it the most affordable entry into an expandable Marstek battery.
Specifications
| Usable capacity | 2.56 kWh (expandable to 10.24 kWh) |
|---|---|
| Output power | 800 VA |
| PV input | 4 × MPPT, max. 2,400 W |
| Cell technology | LiFePO₄ (LFP) |
| Cycles | > 6,000 |
| IP rating | IP65 |
| Warranty | 10 years |
| Capacity: | 2.5 to 5 kWh |
|---|---|
| Cell Technology: | LiFePO₄ (LFP) |
| IP Rating: | IP65 |
| Warranty: | 10 years |
Login
Passt perfekt dazu
Add-on battery for the Marstek Jupiter C Plus. Up to three modules expand the system to 10.24 kWh. Requires a Jupiter C Plus base unit and cannot be operated without one.SpecificationsCapacity2.56 kWhCompatible withMarstek Jupiter C PlusMax. expansion3 modules (10.24 kWh total)Cell technologyLiFePO₄ (LFP)Cycles> 6,000IP ratingIP65Weight23 kgWarranty10 years
Three-phase smart meter for DIN rail mounting. Measures household consumption in real time with 1 % accuracy and is the prerequisite for a Marstek battery to regulate for zero feed-in. Installation in the consumer unit belongs in the hands of a qualified electrician.SpecificationsMeasurement3-phase, 1 % accuracyMax. current100 A per phaseConnectivityWi-Fi 2.4 GHz (802.11 b/g/n), Bluetooth 5.2Compatible withMarstek Venus, Jupiter and SaturnInstallationDIN rail, installation by a qualified electricianWarranty10 years
Bifacial N-Type solar module in a twin pack. With a bifaciality factor of 80 %, the rear face adds to the yield – which pays off particularly on light-coloured facades and on elevated mounts. 30-year linear performance warranty down to 87 % of rated output.SpecificationsPower450 W per module, 2 modules per setCell technologyN-Type bifacial, 96 cells (48 × 2)Efficiency22.5 %Bifaciality factor80 % ± 5 %Dimensions1,762 × 1,134 × 30 mm per moduleWeight24.2 kg per moduleIP ratingIP68Operating temperature−40 °C to +85 °CConnectorMC4Warranty15 years product, 30 years linear performance
